Providing Integrated Sills in the Northern Rivers

Impressive, Fully Integrated Water Drainage Solution

To enhance the functionality and durability of your window or door installation, we at Datco Aluminium offer integrated sills in the Northern Rivers. We will make sure you receive the ideal solution for your needs and budget.

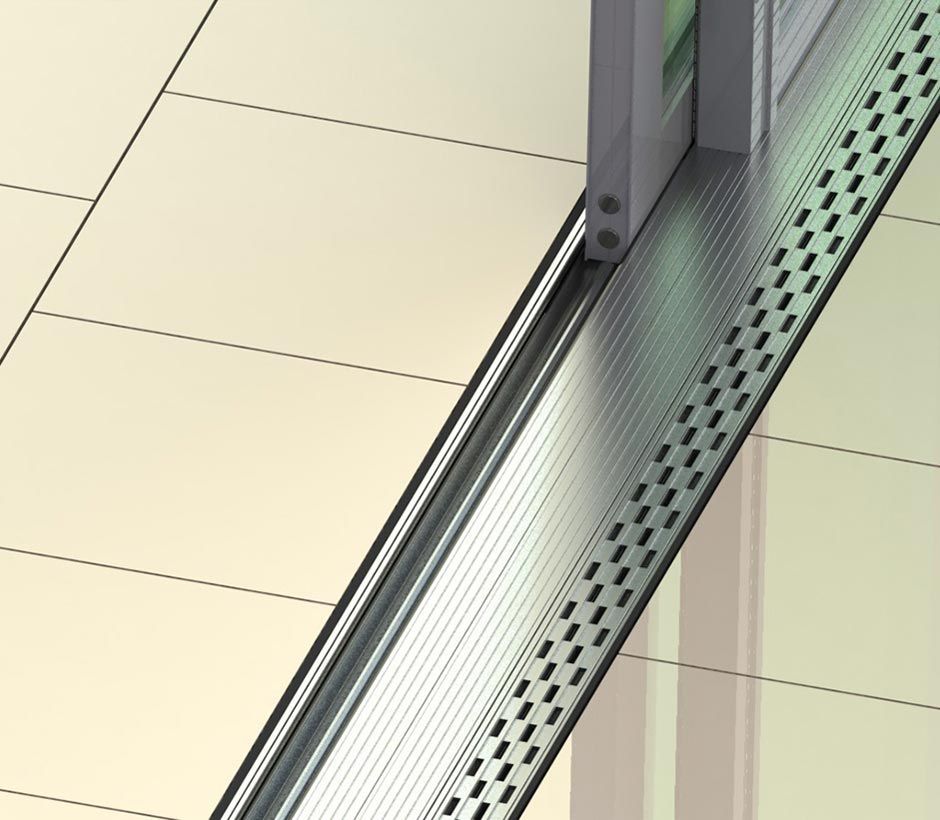

The Integrate Drainage System is an innovative breakthrough for providing flush sill thresholds with an effective drainage solution. What makes our Integrated sills unique is the combination of a subsill and drainage channel merged into a singular system, forming a sump that can house the drain grate as well as a wide array of sills used in our single, double, and triple track door and window systems. When heavy rainfall strikes, the water flows into the drain grate through to the entire sump area, enabling a larger outlet pipe to be installed directly beneath the sill, effortlessly draining the water of high velocity and giving you peace of mind.

Most existing drainage channels that accommodate a drain grate are separate to the subsill, restricting the outlet pipe to be installed only below the grate. This limits water storage capacity and increases the risk of overflow and flooding. By using Integrate, it substantially increases the volume of water storage capacity eliminating the risks of pooling and overflow.

Our sills and drain grates have been wet pendulum slip resistance tested to AS4586-2013, providing seamless room transitions that are safe and slip resistant, ideal for children, wheelchair access and the elderly. Most door and window systems with flush sill thresholds do not meet the deemed-to-satisfy requirements of the National Construction Code (NCC).

The builder is then responsible for adhering to the NCC by adopting a costly performance solution to comply with AS2047. Integrate has been successfully tested at an independent NATA facility, achieving a staggering 450Pa water penetration resistance, significantly exceeding the 150Pa requirement.

Contact Datco Aluminium today at 1300 137 221 to enquire about our integrated sills.
