Gas Strut Windows

A View Of A City From A Window With A Lot Of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Gas Strut Windows

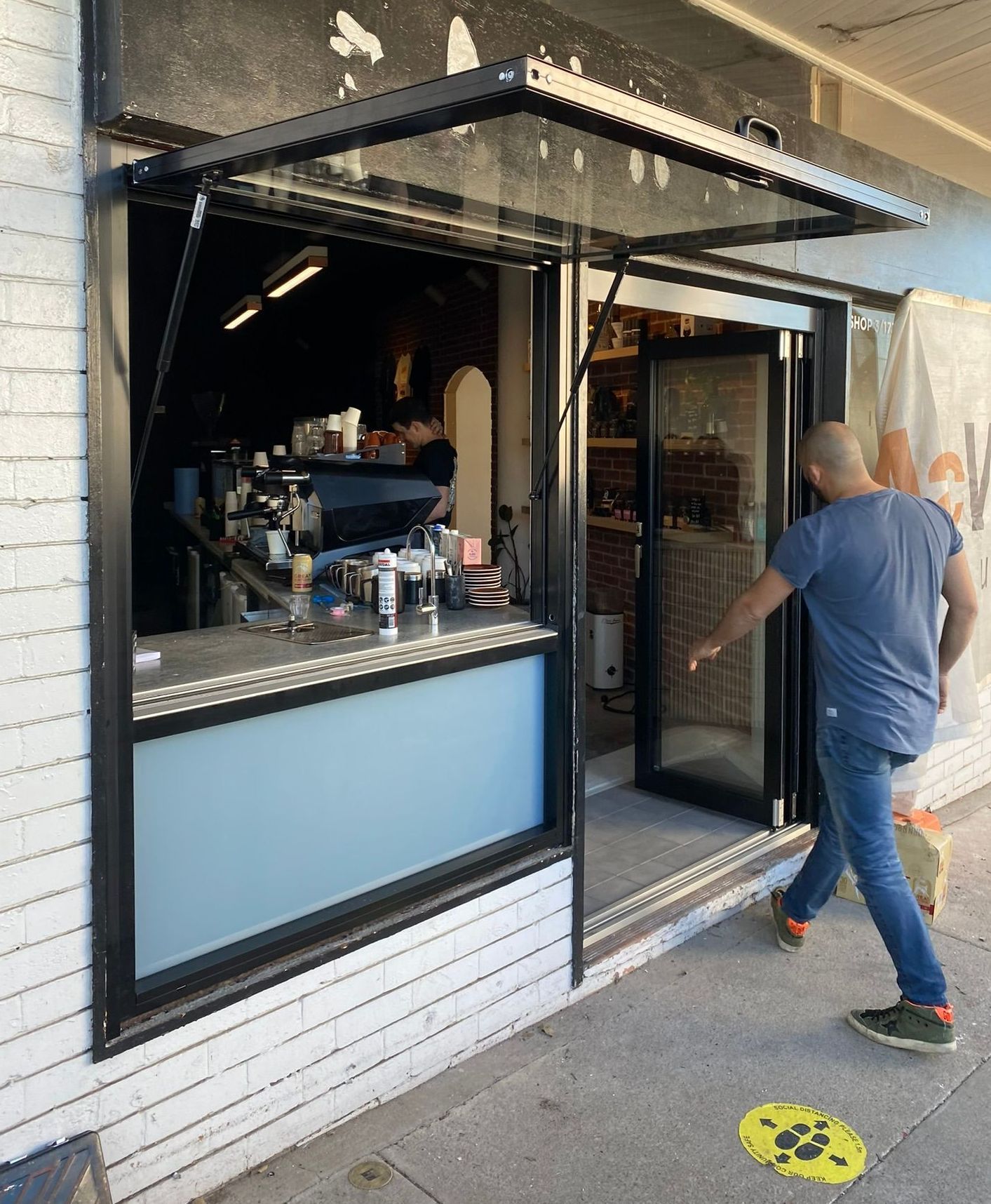

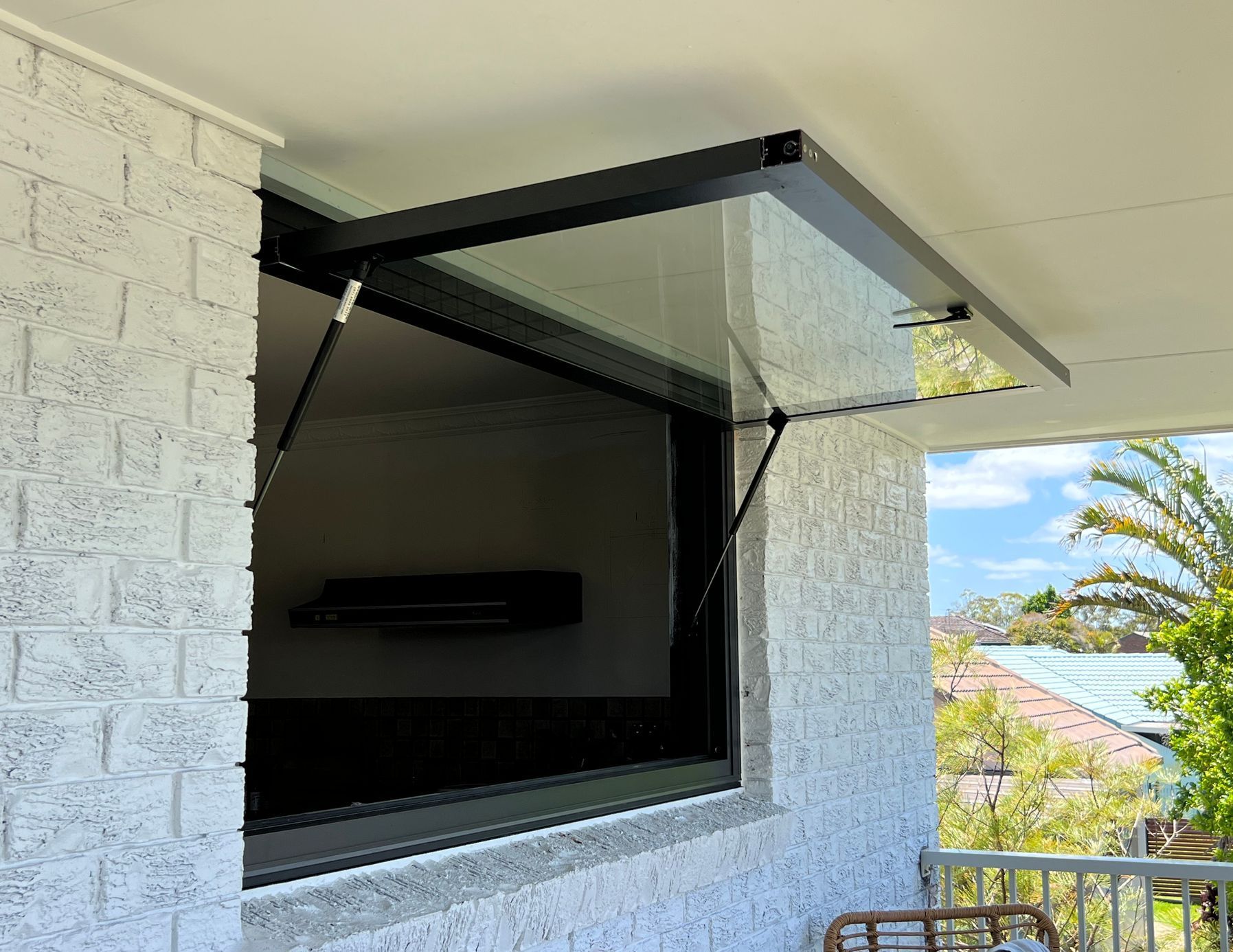

Our Gas Strut Windows are Ideal for kitchens, serveries, and cafés, This stylish window not only opens up your home and business to be the perfect venue space to serve and entertain, but also provides protection from the elements above the opening. With Gas Struts sized to your exact window requirements, even large sashes are a breeze to open and close. When open, the Gas Strut windows allow uninterrupted views, ventilation, and access between spaces.


The continuous top hinge is like an awning window hinge, providing excellent weatherability and making it easy to install. By wet glazing the glass into the sash, not only is it a fully braced frame but also creates a sealed sash, which is excellent for acoustics and weatherability, providing a climate-controlled acoustic atmosphere and making it an economical and environmentally friendly solution.


Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055


Weatherproof sill or seamless sill options.


  • Snap-in adaptor sections for modular configurations.
  • Choice of twin bolt locks.
  • Choice of door handles.


FEATURES & BENEFITS


  • Continuous top hinge to secure sash.
  • Wet glazed for increased sash strength.
  • Up to 1.5m x 2.5m of openable area.
  • Completely weatherable with 2 seals on all sides of the sash.
  • Compatible with 10-22 Gas Struts.


SPECIFICATIONS


  • Frame Sizes 101.6mm,
  • Maximum Sash Height 1500mm
  • Maximum Sash Width 2500mm
  • Maximum Sash Weight 125kgs
  • Maximum No. of Sashes Unlimited
  • Glazing Range 6mm - 10.5mm (GS45 Sash) 6mm - 12.5mm (GS85 Sash)
Get in Touch

CONFIGURATION EXAMPLES (viewed from outside)

A Drawing Of Different Types Of Windows And Doors On A White Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.
