Acoustic Products

When the design calls for quiet spaces, the Dual Glaze System is the answer. At Datco Aluminium, we are proud to offer a great variety of dual-glazed products for windows and a host of other architectural applications.

Dual glaze is ideal for recording spaces, quiet offices hotel rooms next to busy streets and more. It has been designed with clean lines and precise square cuts to truly provide exceptional architectural aesthetics. The system delivers profound enhancements such as pre-slotted self-draining transoms and sills, as well as concealed drainage pockets for optimal wearability. The Dual Glaze System also encourages a reduction in labour through efficient fabrication by incorporating the use of a captive wedge, as well as straight cutting.

Our dual glaze is designed to comply with Australian Standards AS1170, AS1288, AS2047 and AS4055.

Dual Glaze Options

Subframing for exposed areas.
Combinational adaptability with various systems across our entire range.
Incorporated as highlights, lowlights and sidelights.

Features & Benefits

Reduced sound transmission with a reduction of up to Rw50.
Simple and efficient fabrication with the use of straight-cutting.
Self-draining sills and transom designs enhance water management and weatherability.
Advanced Seal technology for effective insulation, acoustics and weather.
Outstanding durability.

Specifications

Frame Sizes: 101.6mm
Maximum Frame Size (single): 6000mm high x 3000mm wide
Maximum No. of Frames: Unlimited
Glazing Range: 5mm - 13.5mm

To arrange glazing in the Northern Rivers, call us today at 1300 137 221. We service Murwillumbah, the Tweed Coast, Kingscliff, Byron Bay, Ballina, Lismore, Kyogle, Casino, Yamba, Grafton and the Gold Coast.

Get in Touch

CONFIGURATION EXAMPLES (viewed from outside)

A Drawing Of Different Types Of Windows And Doors On A White Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

Gorgeous Glass Products for Homes & Businesses

A Balcony With A Glass Railing And Trees In The Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Double Glazed/Insulated

We offer insulated glazing designed to improve energy efficiency by reducing heat transfer, keeping your home cooler in summer and warmer in winter. This glazing solution creates a thermal barrier that helps regulate indoor temperatures, resulting in lower energy consumption and reduced utility bills.

Beyond energy savings, insulated glazing improves the overall comfort of your living or working space by maintaining a consistent climate year-round. It also enhances the environmental sustainability of your property, contributing to lower carbon footprints.

Ideal for residential and commercial applications, insulated glazing adds both functional and aesthetic value, while also increasing the overall property value.

Get a Quote

Datco Glass Imports

Datco Glass Imports is our Wholesale glass division. Here at Datco, we can provide you with a full range of glass products to suit all your needs.

This allows us to offer you the best quality, range, and price available so we can be competitive, fast, and reliable in offering glass products at wholesale prices.

We provide a wide range of products and services to the public, including glass cutting, reframing, specialty glass, and other services. Please contact our office for further information.

Cut to Size

Need a custom glass product for your home or business? The team at Datco is here to help! Our qualified glaziers cut glass to size following Australian Standards and provide a full glass cut-to-size service. With the right skills and tools, glass can be cut into different shapes for various applications. From picture frames to tabletops, to fireplaces and mirrors, if it’s glass, Datco can do it all!

Custom Made Glass

Do you need a special type of glass that is not available anywhere?

From different coloured tinted glass to oversized panels to meet BASIX and/or BAL ratings, Datco can help!

Get a Quote

A Sliding Glass Door Is Open To A Room With A Brick Wall — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Stack Of Clear Glass Pieces Stacked On Top Of Each Other — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Frameless Glazing

Whether your next project requires something simple such as a frameless glass shower screen, or something more complex such as a frameless shopfront, we can help.

We have the experience and resources to help you achieve your desired outcome. Below is just a small list of scenarios that we can assist you with.

Frameless doors: swing, sliding, bifold + stacking

Frameless shopfronts

Use of toughened glass fittings and systems to achieve a high-end market aesthetic.

Get a Quote

Centre Glazed System

The Centre Glazed System is one of the more popular alternative systems. Not only does it offer superb weatherability thanks to the advanced sealing technology, self-draining sills, and transom designs, but also insulates and reduces noise phenomenally well. The Centre Glaze system is extremely versatile and adaptable to a wide array of mixed combinations with various systems from our other products such as sliding doors, windows, louvres, and infill panels. Strong extruded profiles can produce spans up to a whopping 3 meters with ease, providing large and unobstructed panoramic views ideally from shopfront and architectural designed settings.

Designed to Comply with Australian Standards AS2047

Centre Glazed System Options

Sub framing for exposed areas.
Combinational adaptability with various systems across our entire range.
Incorporated as highlights, lowlights, and sidelights.
Single or double glazing with the use of an adapter.

Features & Benefits

Reduced labour costs with the use of a captive wedge.
Simple and efficient fabrication with the use of straight cutting.
Self-draining sills and transom designs enhancing water management and weatherability.
Advanced technology for effective insulation, acoustics, and weather durability.

Specificaions

Frame Sizes: 101.6mm, 150mm
Maximum Frame Size (single): 6000mm high x 3000mm wide
Maximum No. of Frames: Unlimited
Glazing Range: 5mm - 13.5mm

CONFIGURATION EXAMPLES (viewed from outside)

A Black and White Drawing of Different Types of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

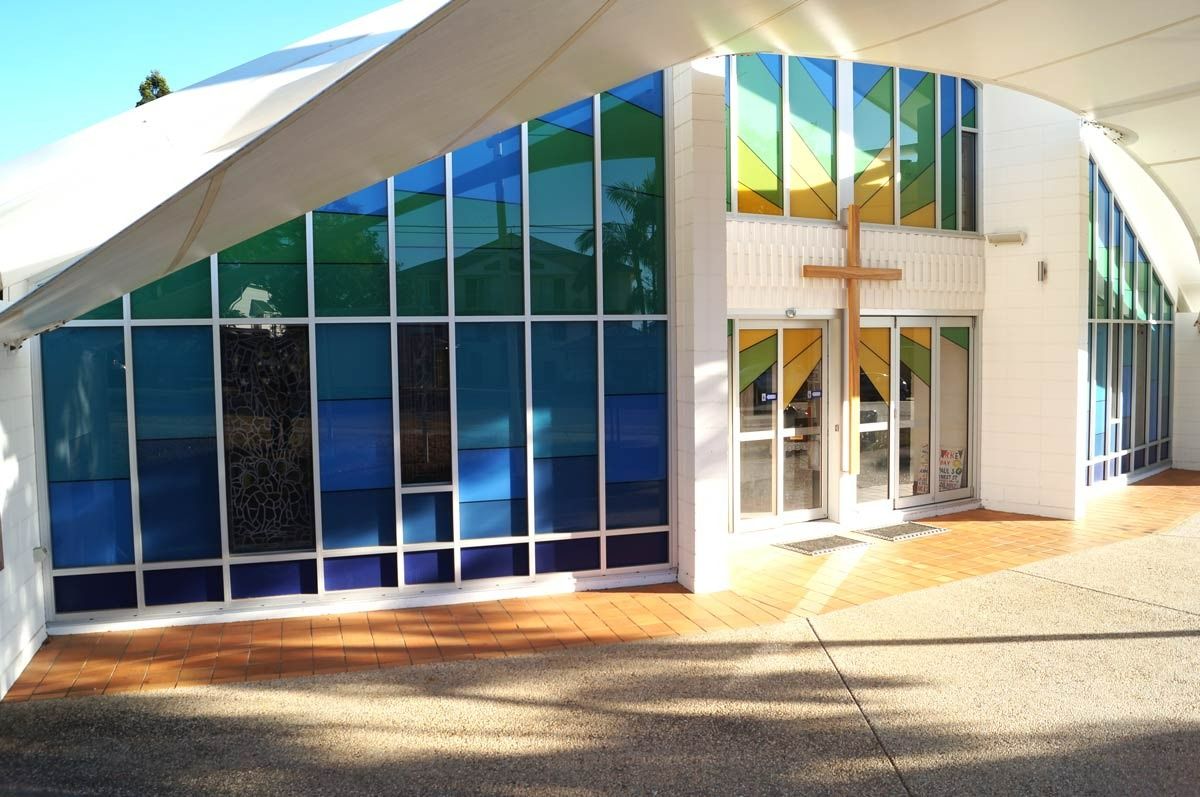

A Church With a Cross on the Front of It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Bedroom With a King Size Bed, a Chair, and a Large Window — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Faces of Humanity

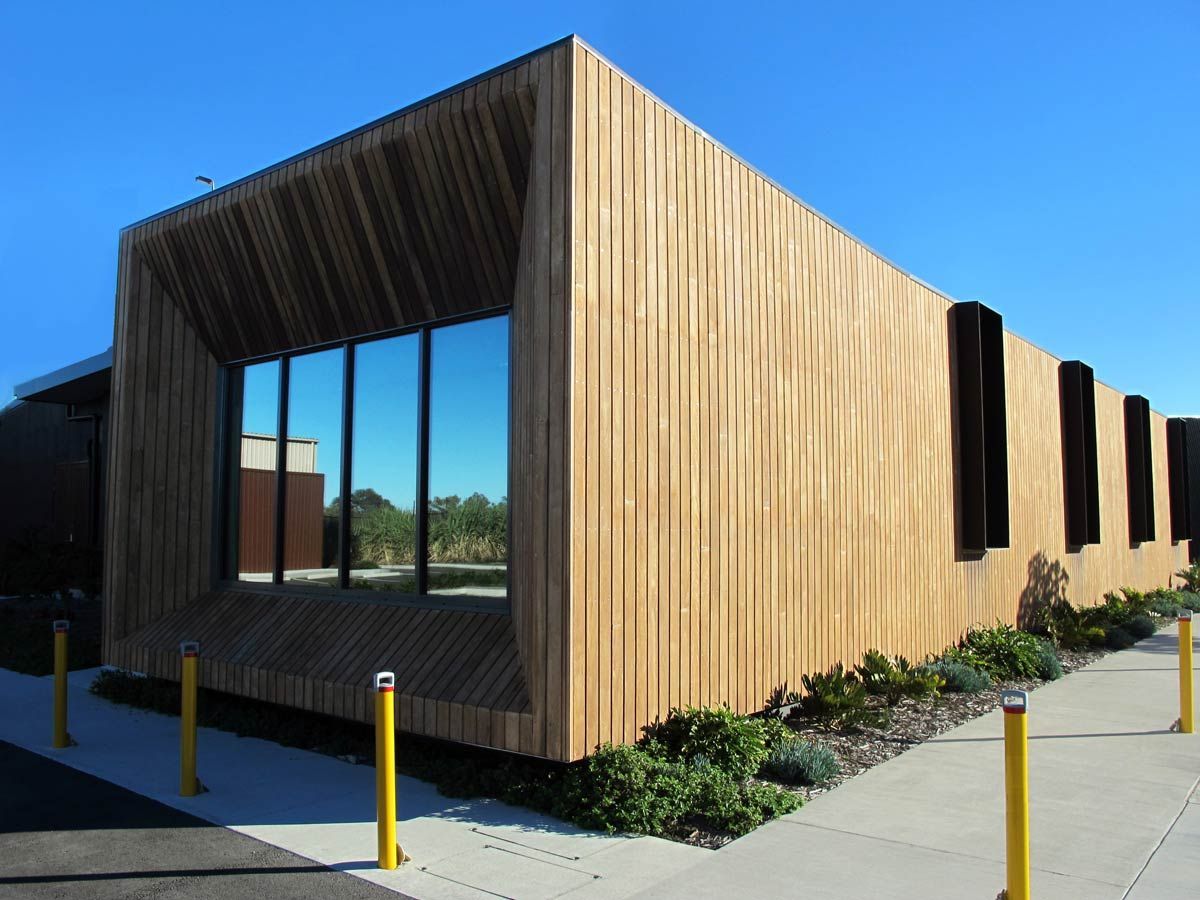

A Building With a Wooden Facade and a Lot of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Large Building With a Lot of Windows and a Blue Sky in the Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Building With a Lot of Windows and a Fence in Front of It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Balcony With a Lot of Windows and Hanging Chairs — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Building With a Sign That Says Subway on It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Woolworths Store With a Lot of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

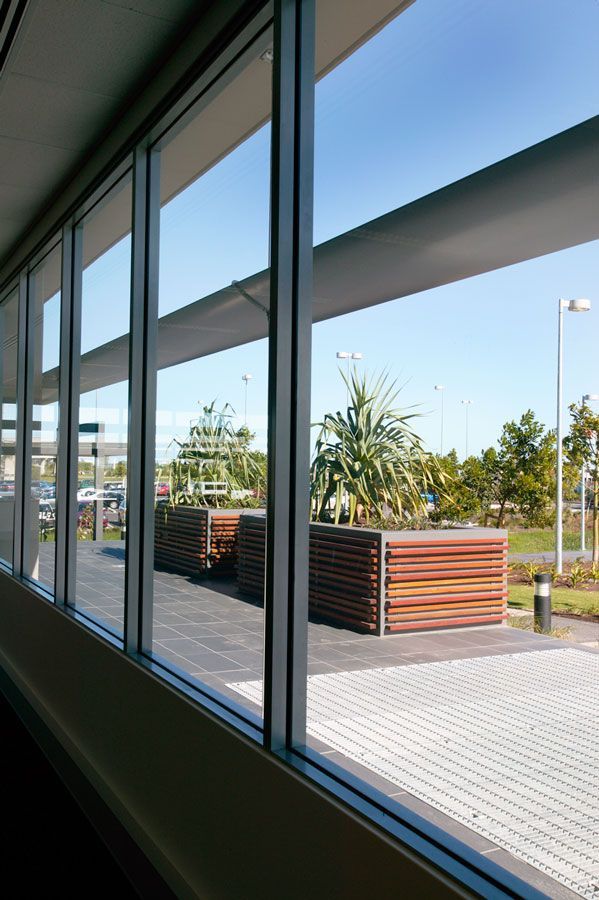

A Building With a Lot of Windows Looking Out to a Parking Lot — Datco Aluminium Pty Ltd In Murwillumbah, NSW

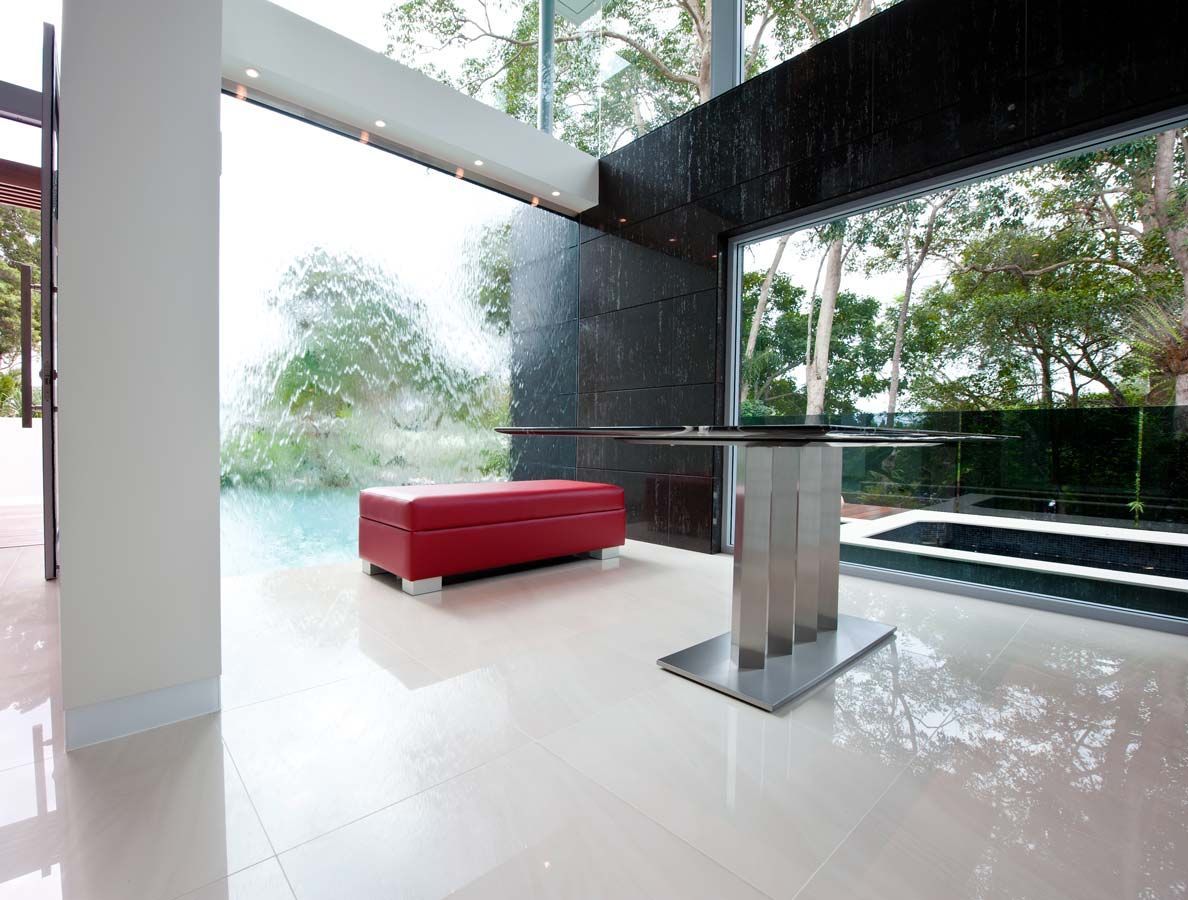

A Living Room With a Red Bench and a Table — Datco Aluminium Pty Ltd In Murwillumbah, NSW

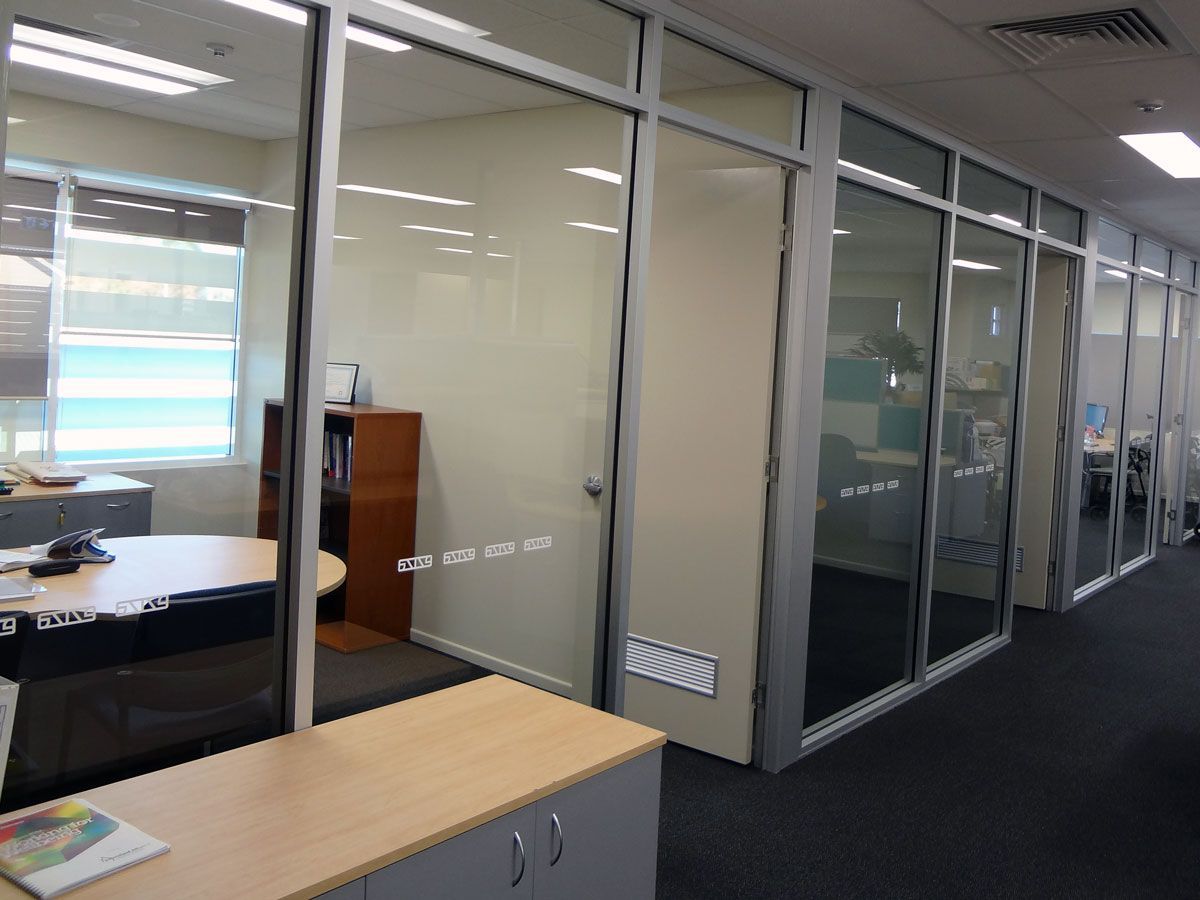

An Office With a Lot of Glass Walls and Doors — Datco Aluminium Pty Ltd In Murwillumbah, NSW

CONFIGURATION EXAMPLES (viewed from outside)

A Drawing of Different Types of Windows and Doors — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

Front Glazed System

When the project design calls for a flush glass façade, the Front Glaze System range is the answer. Ideal for low, to high rise curtain walls, shopfronts, architectural applications, as well as for sloping atrium applications. designed with clean lines and precise square cuts, truly provide exceptional architectural aesthetics. This system delivers profound enhancements such as pre-slotted self-draining transoms and sills, as well as concealed drainage pockets for optimal weatherability. The Front Glaze System also encourages reduction in labour through efficient fabrication by incorporating the use of a captive wedge, as well as straight cutting.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

Front Glazed System Options

Sub framing for exposed areas.
Combinational adaptability with various systems across our entire range.
Incorporated as highlights, lowlights, and sidelights.
Mullion splicing for enhanced strength and durability.
Internal, external, or structurally bonded glazing.

Features & Benefits

Reduced labour costs with the use of a captive wedge.
Simple and efficient fabrication with the use of straight cutting.
Self-draining sills and transom designs enhancing water management and weatherability.
Technology for effective insulation, acoustics, and weather durability.

Specifications

Frame Sizes: 100mm, 150mm
Maximum Frame Size (single): 6000mm high x 3000mm wide
Maximum No. of Frames: Unlimited
Glazing Range: 5mm - 13.5mm

A Building With a Sign That Says 'atm' on It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Faces of Humanity

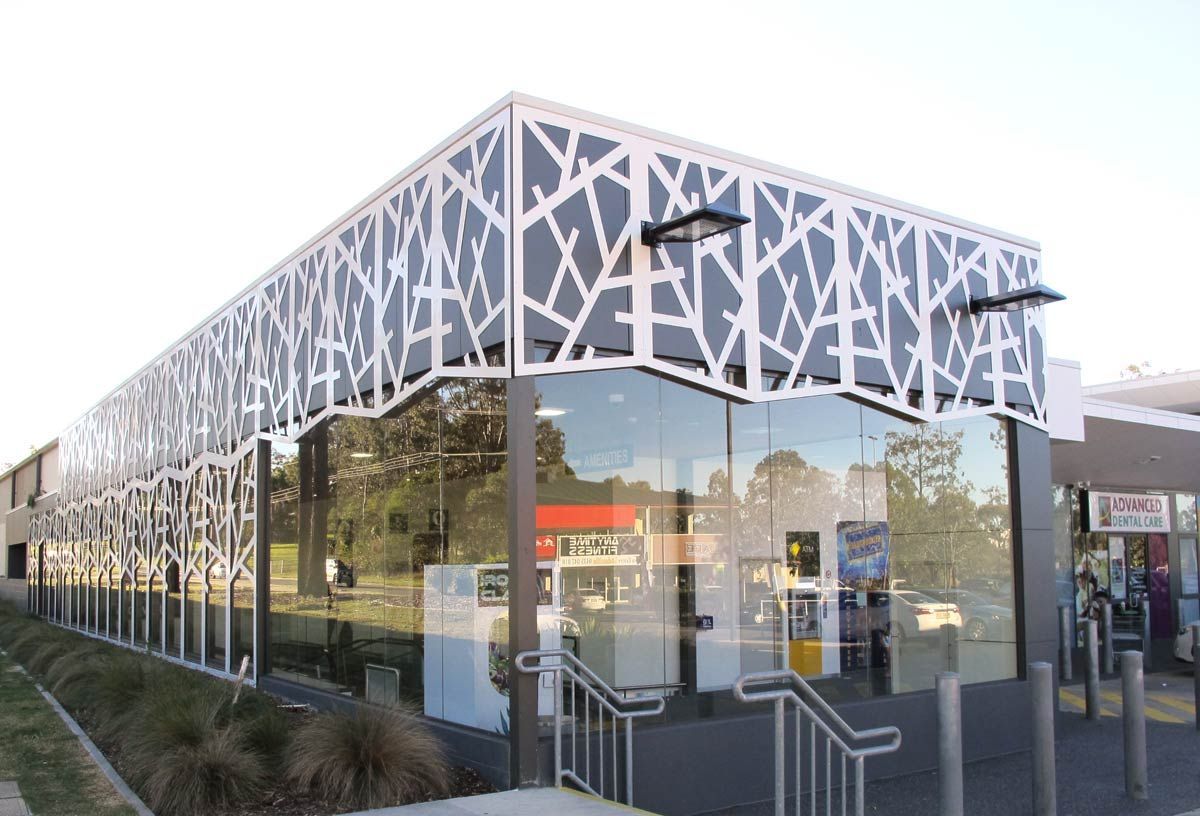

A Large Building With a Geometric Design on the Side of It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

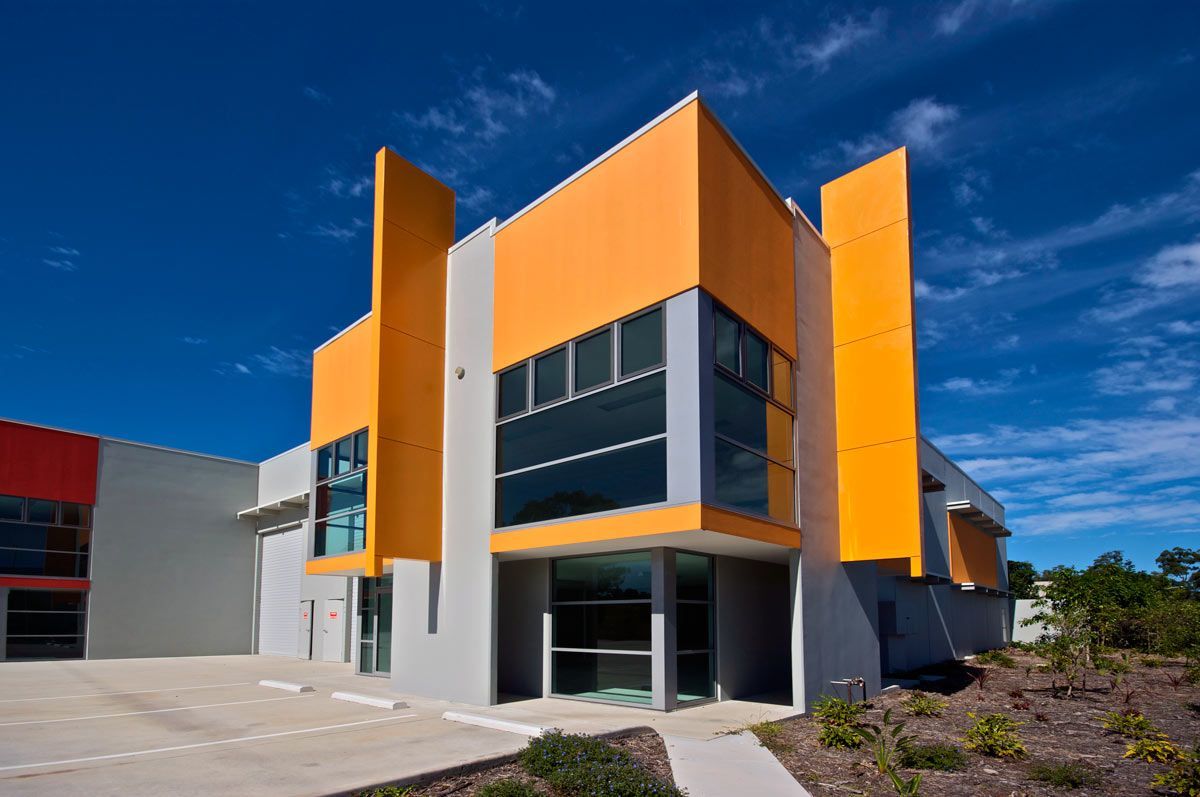

A large yellow and white building with a lot of windows

A Red and White Building With a Lot of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

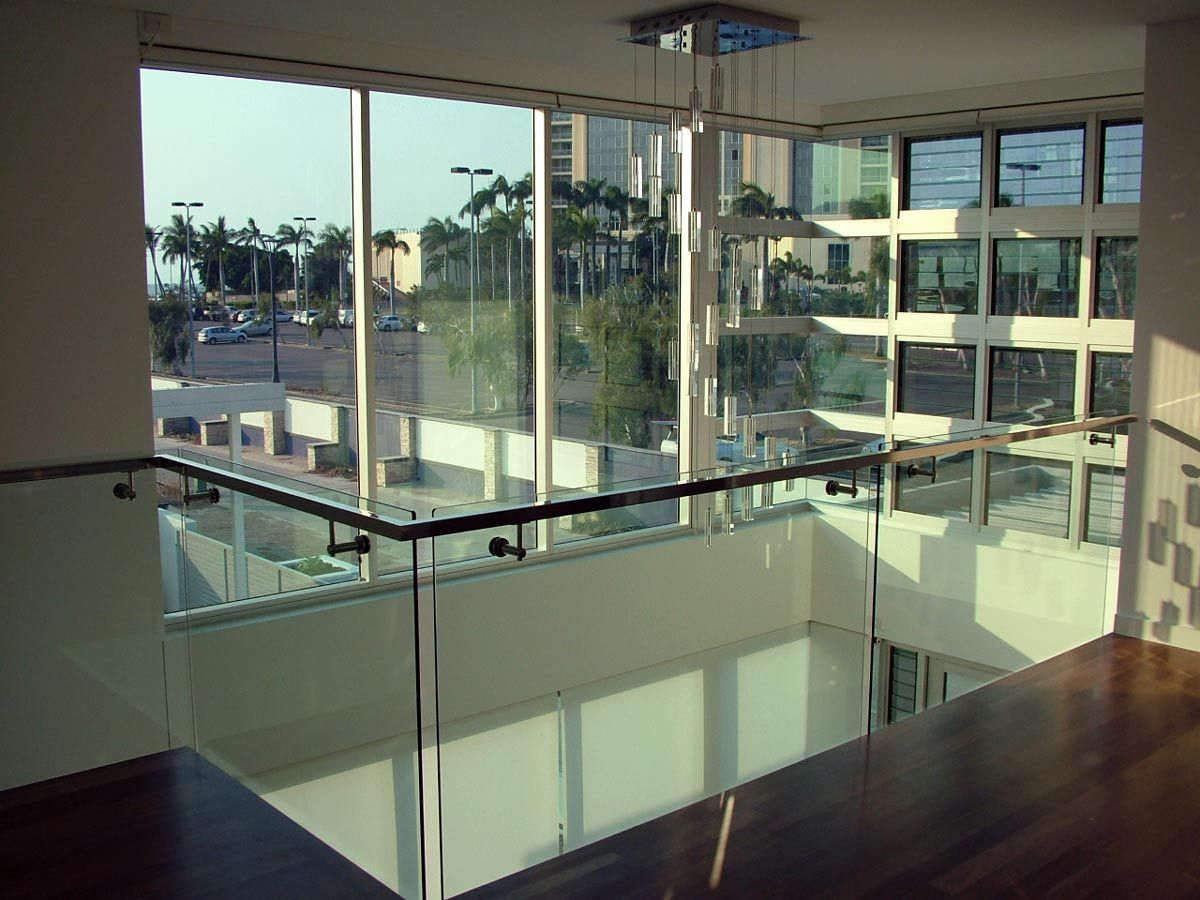

A Staircase With a Glass Railing and Lots of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

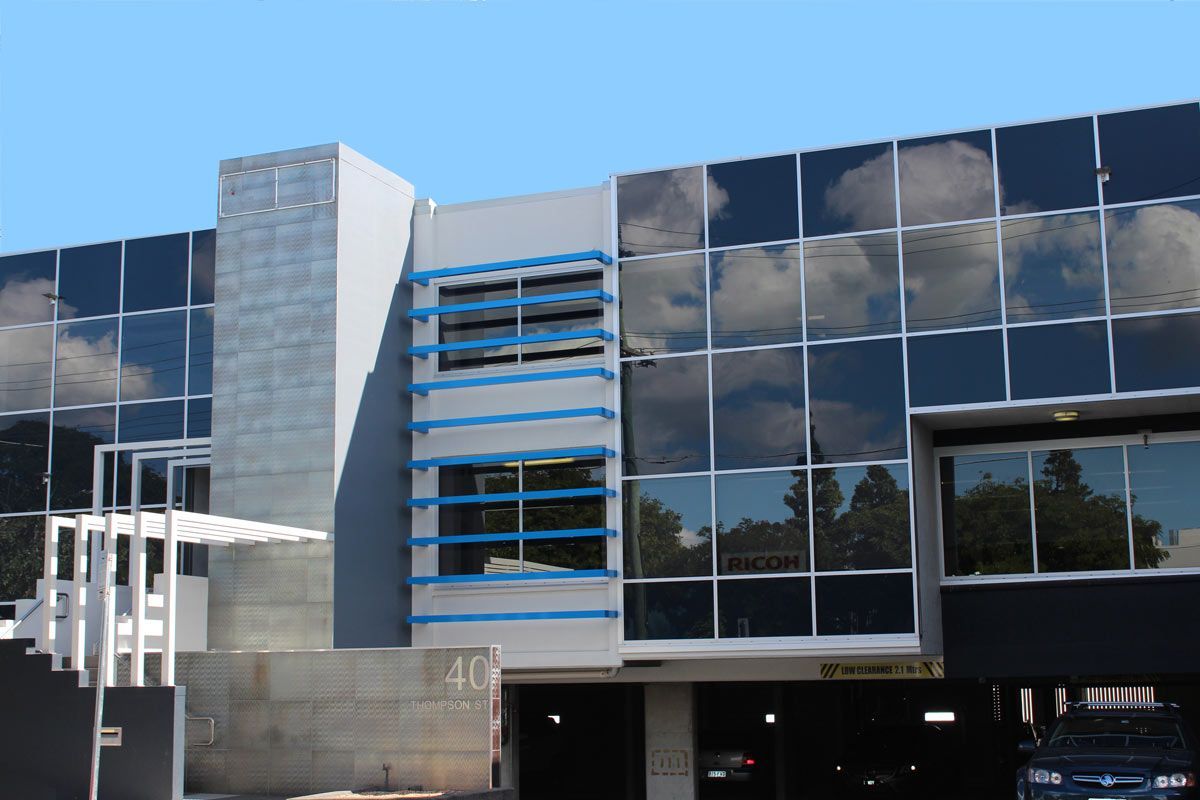

A Large Building With a Lot of Windows and a Car Parked in Front of It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

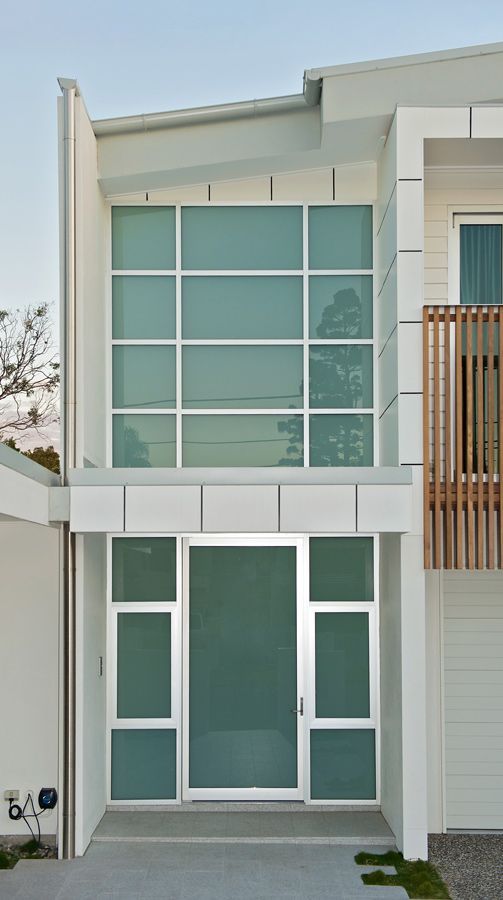

A White House With a Large Door and Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

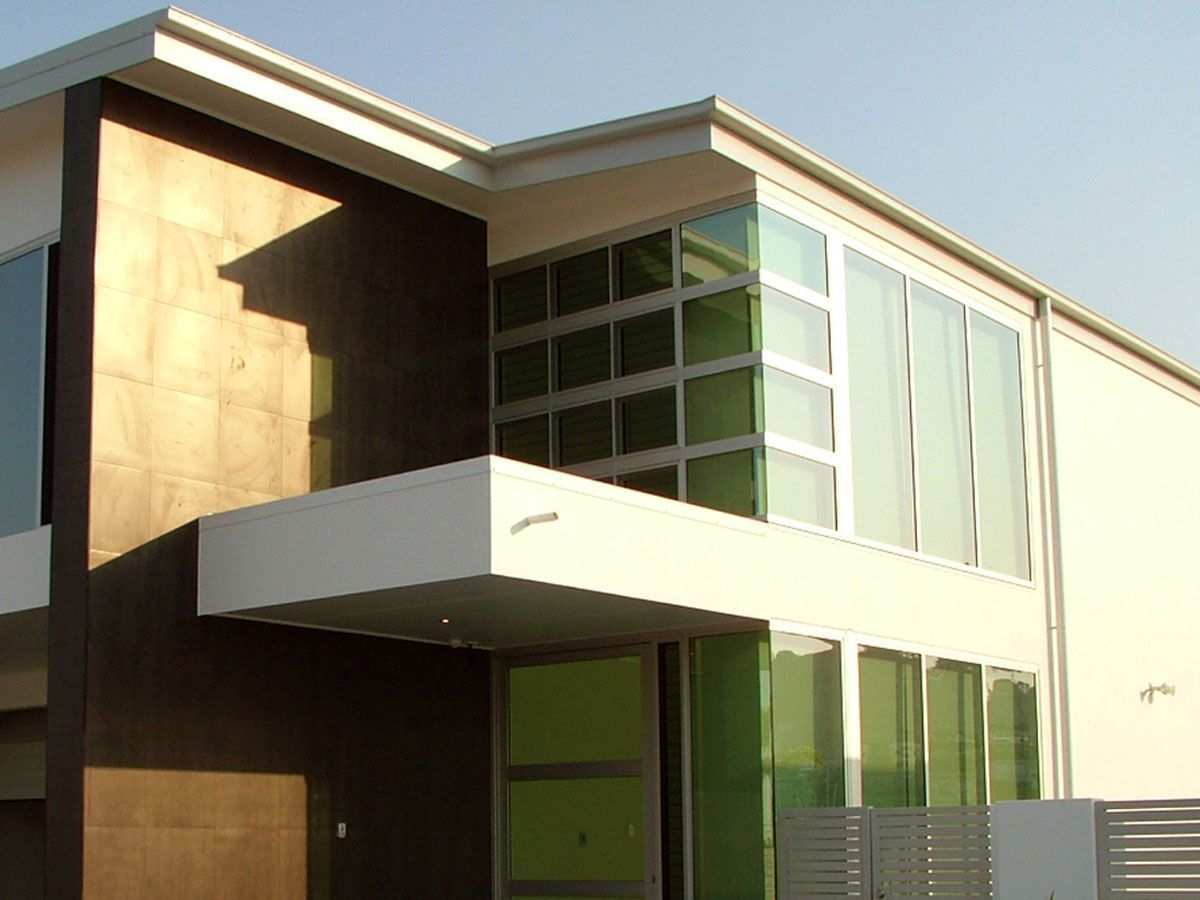

A Large Building With a Lot of Windows and a Balcony — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Front Double Glaze

The Front Double Glaze System provides a flush glass façade finish that creates a divine mirrored appearance. The Front Double Glazed Window is an ideal energy efficient choice with additional benefits such as minimising noise, and enhanced durability. The sealed air gap between the two panes acts as an added layer of insulation. This added thermal resistance reduces heat transmission keeping you cool in summer and warm in winter. The Front Glaze System delivers profound enhancements such as pre-slotted self-draining transoms and sills, as well as concealed drainage pockets for optimal weather protection.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

Front Double Glaze Options

Subframing for exposed areas.
Combinational adaptability with various systems across the range.
Incorporated as highlights, lowlights, and sidelights.
Mullion splicing for enhanced strength and durability.
Options of internal or external glazing.

Features & Benefits

Reduced labour costs with the use of a captive wedge.
Simple and efficient fabrication with the use of straight cutting.
Self-draining sills and transom designs enhancing water management and weatherability.
Double glazing fused with advanced sealing technology delivers supreme insulation, acoustics, and weatherability.

Specifications

Frame Sizes: 101.6mm, 150mm
Maximum Frame Size (single): 6000mm high x 3000mm wide
Maximum No. of Frames: Unlimited
Glazing Range: 13mm - 28mm

CONFIGURATION EXAMPLES (viewed from outside)

Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

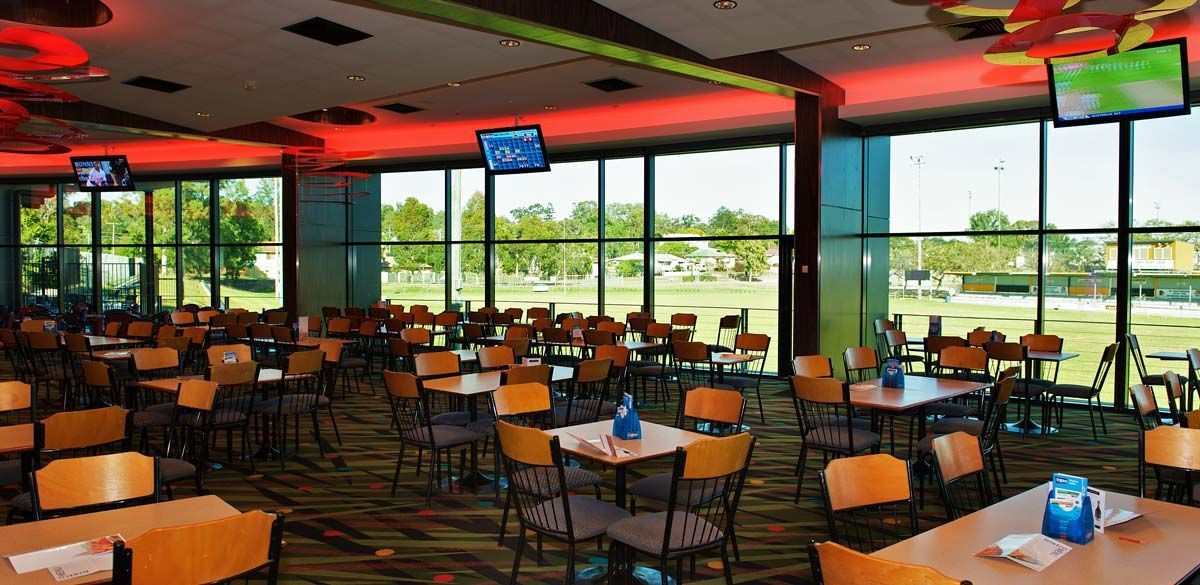

A Large Dining Room With Tables and Chairs and Lots of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Large Building With a Lot of Windows and Trees in Front of It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Faces of Humanity

Stackable Front Glaze

The Stackable Front Glazed support structure is virtually invisible, exhibiting a flat and lustrous glass façade. This unique system delivers taller and broader glass openings on multiple floors complementary for augmented views. Large commercial buildings can often expand, sway, and contract. The innovative designing of this system has incorporated features to control these factors by providing a durable yet flexible system that also delivers exceptional water diversion and thermal efficiency. The costs of materials to construct a Stackable Front Glazed System is significantly lower in comparison to a suspended system, thus providing a contemporary yet economical alternative for your next commercial project.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

Stackable Front Glaze Options

Subframing for exposed areas.
Mullion splicing for enhanced strength and durability.
Internal, external, or structurally bonded glazing.
Combinational adaptability with various systems.
Mullion splicing for enhanced strength and durability.
Options of internal or external glazing.

Features & Benefits

Almost invisible support structure.
Higher and wider glass openings on multiple floors.
Designed to cater for expansion and contraction and structural movement.
Lower material costs when compared to a suspended system.
Significantly a wide range of expansion and contraction movement limits between floors.
Reduced labour costs with the use of a captive wedge.
Simple and efficient fabrication with the use of straight cutting.
Self-draining sills and transom designs enhancing water management and weatherability.
High performance seals for optimum insulation, acoustics, and weatherability.

Specifications

Frame Size: 150mm
Maximum Frame Size (single): 3500mm high x 1500mm wide
Maximum No. of Frames: Unlimited
Glazing Range: 5mm - 13.5mm (single) 13mm - 28mm (double)

CONFIGURATION EXAMPLES (viewed from outside)

A Black and White Drawing of a Grid of Squares on a White Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

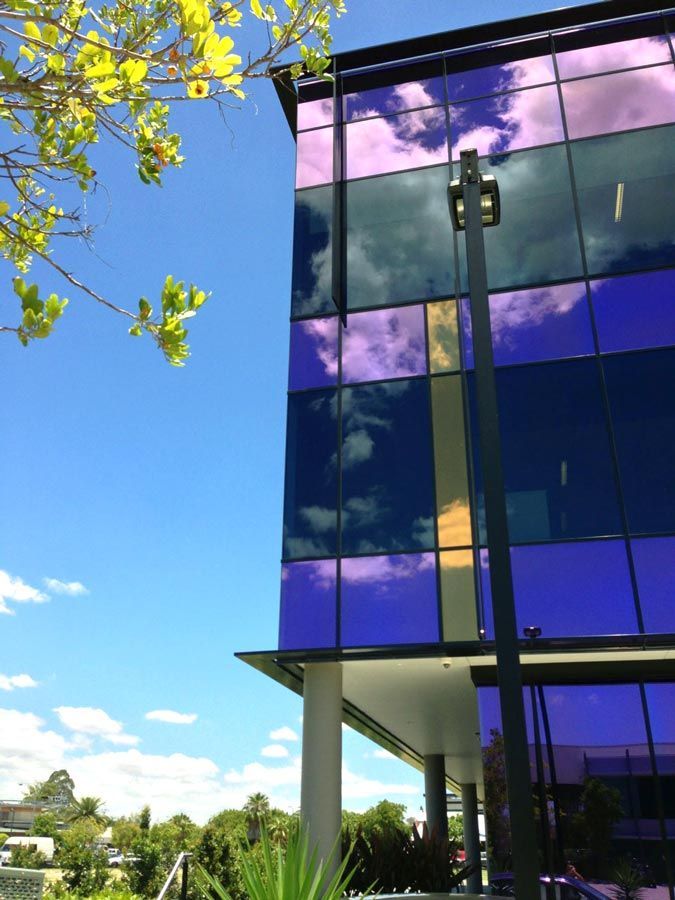

A Blue and Purple Building With a Blue Sky in the Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Faces of Humanity

A Building With Purple Windows and a Blue Sky in the Background — Datco Aluminium Pty Ltd In Murwillumbah, NSW

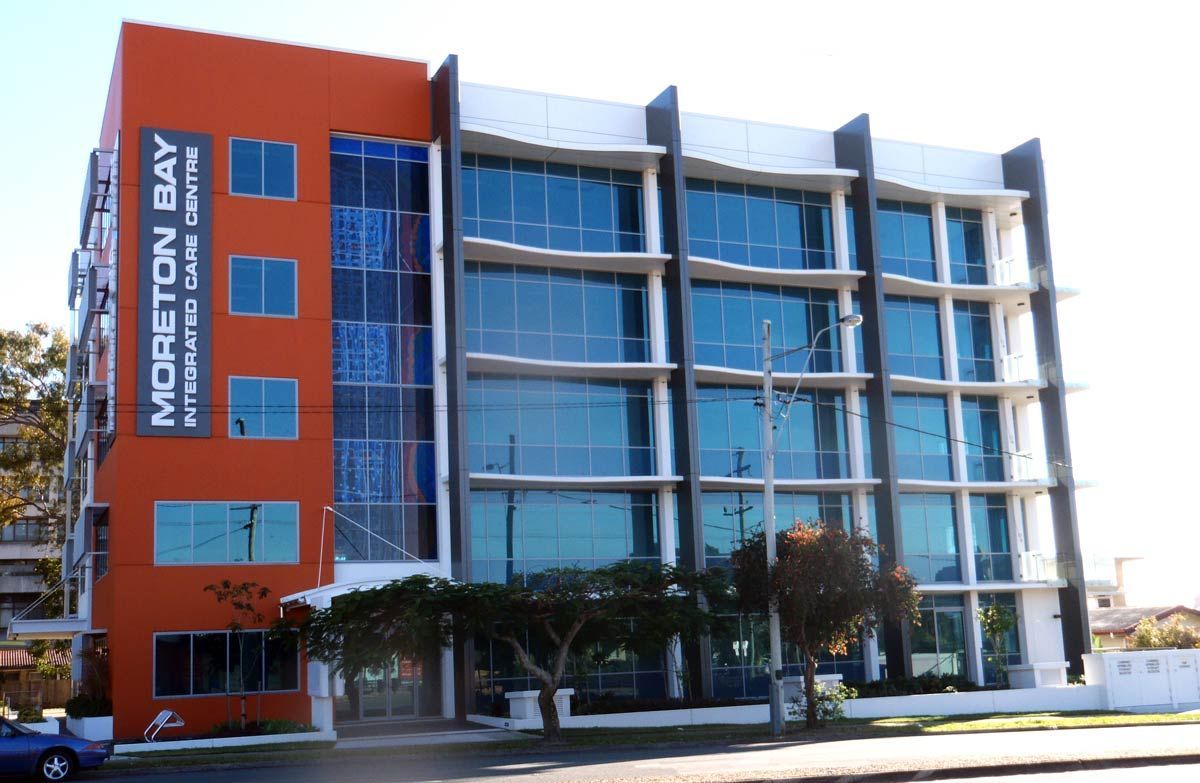

A Large Building With a Sign That Says 'moreton Bay' on It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

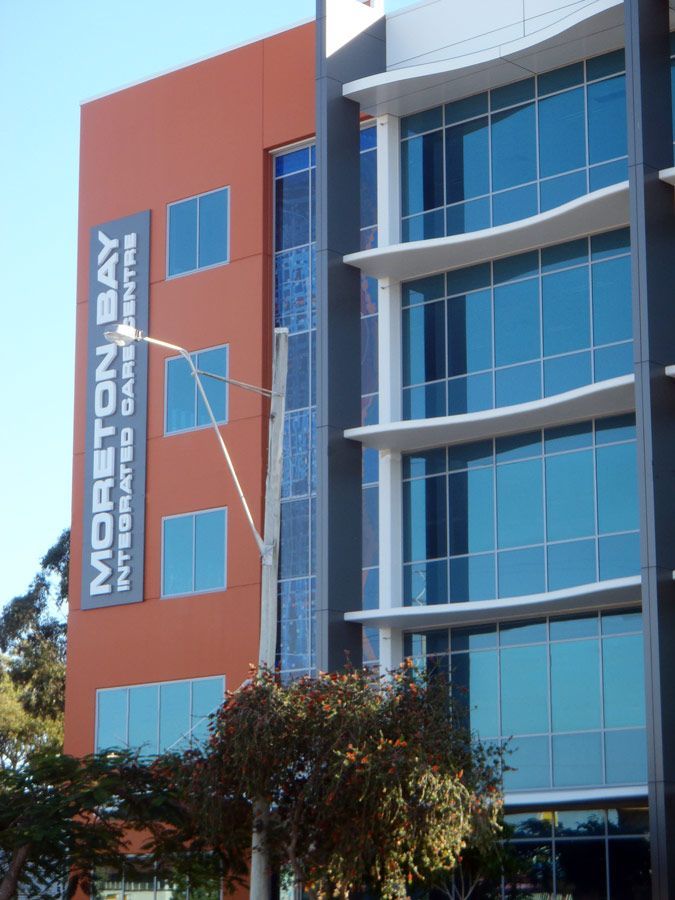

A Building With a Sign That Says Moreton Bay — Datco Aluminium Pty Ltd In Murwillumbah, NSW

FAQs

What types of glazing do you offer?
We offer various glazing options, including insulated glazing, frames glazing, and acoustic glazing to meet different performance and design needs.
How does insulated glazing benefit my property?
Insulated glazing improves energy efficiency by reducing heat transfer, which helps in maintaining comfortable indoor temperatures and lowering energy costs.
What is frames glazing, and when is it used?
Frames glazing refers to the integration of glass into aluminium frames to provide a sleek and modern appearance. It is commonly used in residential and commercial applications.
What are the advantages of acoustic glazing?
Acoustic glazing reduces noise transmission, making it ideal for areas where sound insulation is important, such as homes near busy roads or commercial spaces requiring privacy.
