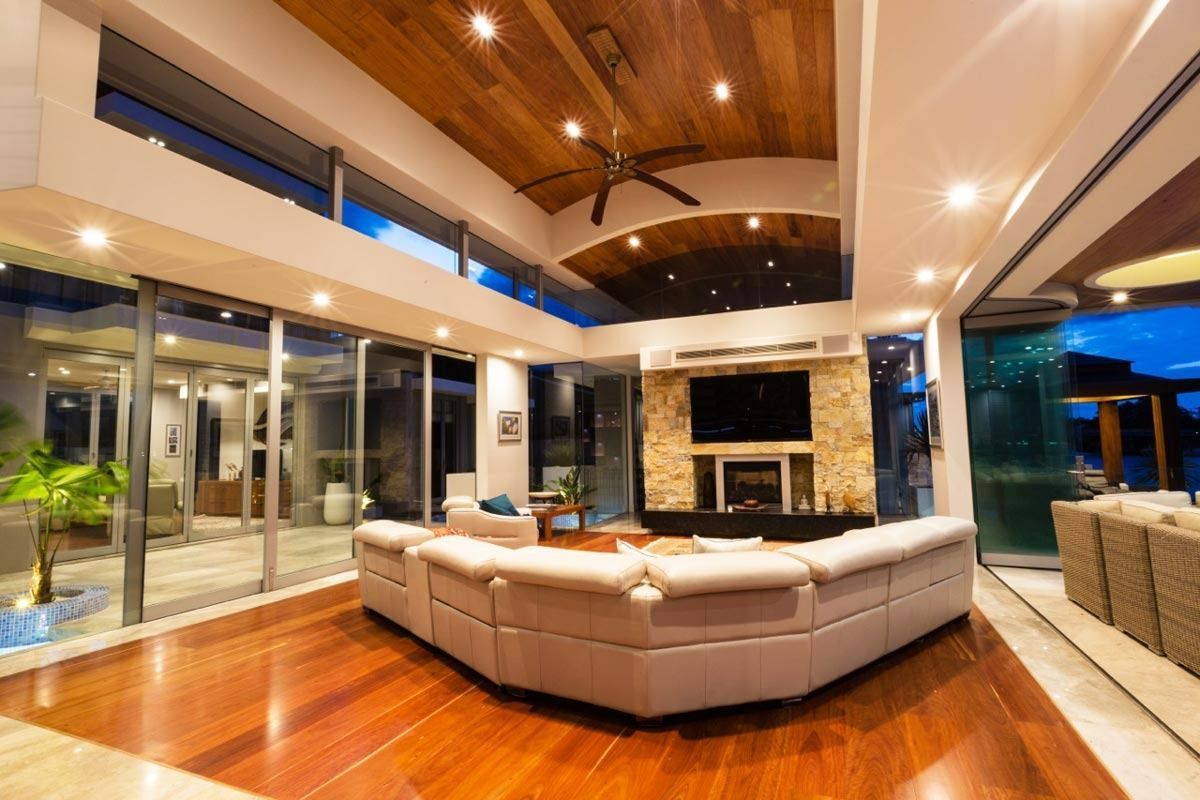

A Living Room With A Large Couch And A Fireplace — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Adding Style & Functionality to Your Property

At Datco Aluminium, our high-performance doors are designed to offer exceptional durability, smooth operation and energy efficiency. All of our commercial and residential doors are engineered to maximise space, enhance natural light and create seamless transitions between indoor and outdoor areas.

Built to withstand tough climate conditions, our doors provide excellent thermal insulation, reducing energy costs and improving comfort year-round. We offer outstanding hinged, stacking and sliding options. What's more, our team is happy to carry out any glazing work that is required, and we will implement integrated stills as required.

Contact us today to explore how our high-performance doors can elevate your project. You can reach us at 1300 137 221. We service clients in Murwillumbah, the Tweed Coast, Kingscliff, Byron Bay, Ballina, Lismore, Kyogle, Casino, Yamba, Grafton and the Gold Coast.

Contact Datco Aluminium today on 1300 137 221 or email us for a quote for your next project.

Get in Touch

Open the Door to Improved Property Aesthetics & Comfort

26mm Sliding & Stacking Door

This apartment sliding window and door provides benefits such as panoramic views, as well as creating a welcoming gateway for nature to bring in generous breeze and sunshine. Capable of handling even the fiercest of weather, it ensures you are protected whilst giving you a sense of warmth and security.

This high-performance product is complemented with strength and durability, an innovative design, as well as additives of high-quality seals and ball bearing rollers. This guarantees the provision of an exceptional apartment sliding window and door system.

This door is designed to comply with Australian Standards AS1170, AS1288, AS2047 and AS4055 (Provisional Patent Number 2014902907 pending).

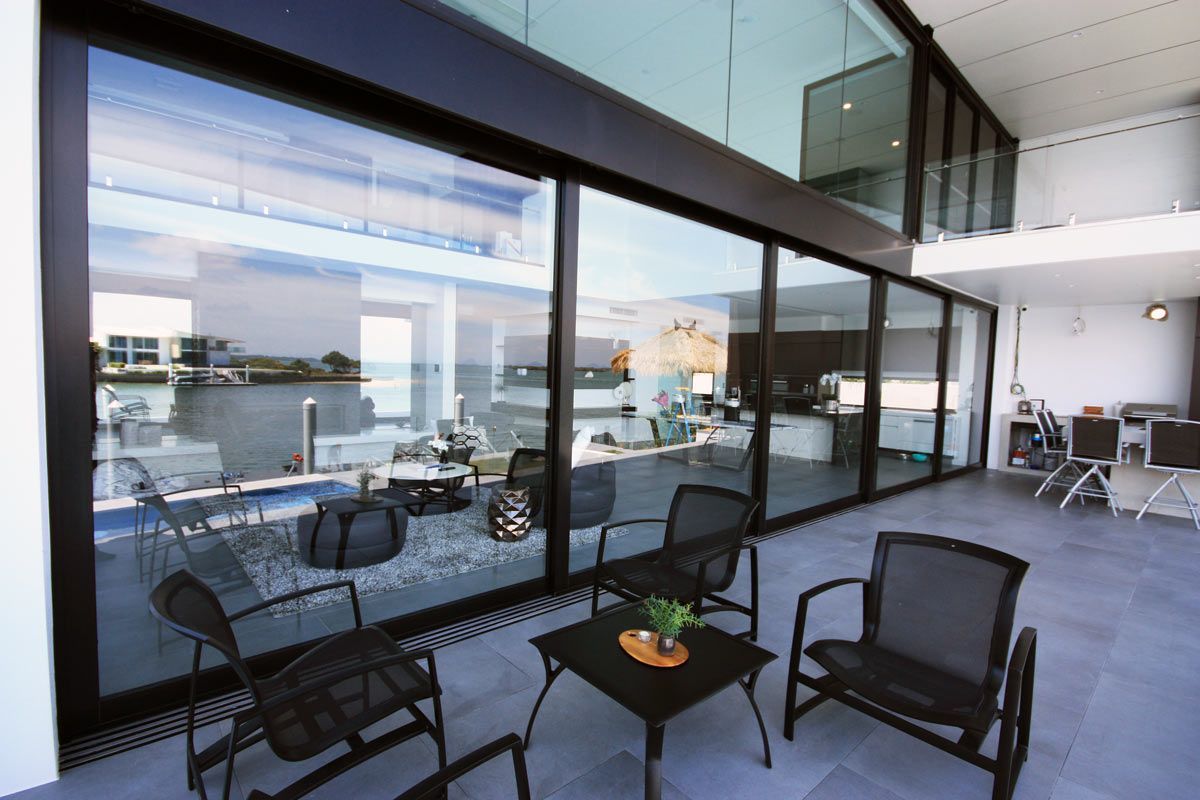

An Empty Room With A Sliding Glass Door — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Black And White Drawing Of Different Types Of Windows — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Options

Versatile configuration options for highlights and sidelights
Options of two, three, and four standard panel configurations
Multi-stacking options up to eight panels
Single-direction or bi-parting openings
Diverse rail alternatives
90-degree post-less corner
High- and low-profile sills catering to geographical and architectural specifications
Patented integrated framing

Features and Benefits

Panoramic views
Generous access to light and breeze
Stile depth of 26mm durable to high wind load areas
High-performance seals insulate the climate and block noise.
Compatible with a range of insect and security screening alternatives
NATA-tested and accredited

Specifications

Frame Size: 65mm, 101.6mm, 150mm
Max. Opening Size: 2800mm high x 11600mm wide
Maximum Panel Size: 2600mm high x 1450mm wide
Maximum Panel Weight: 180kgs
Maximum Number of Panels: Up to 4 left + 4 right (8 in total)
Glazing Range: 5mm - 10.38mm (12.5mm pocket),10.38mm - 15mm (18.5mm pocket)

Configuration Examples

Below is a selection of configuration examples. Thanks to our modular design, there are many other possible configurations.

Get a Quote

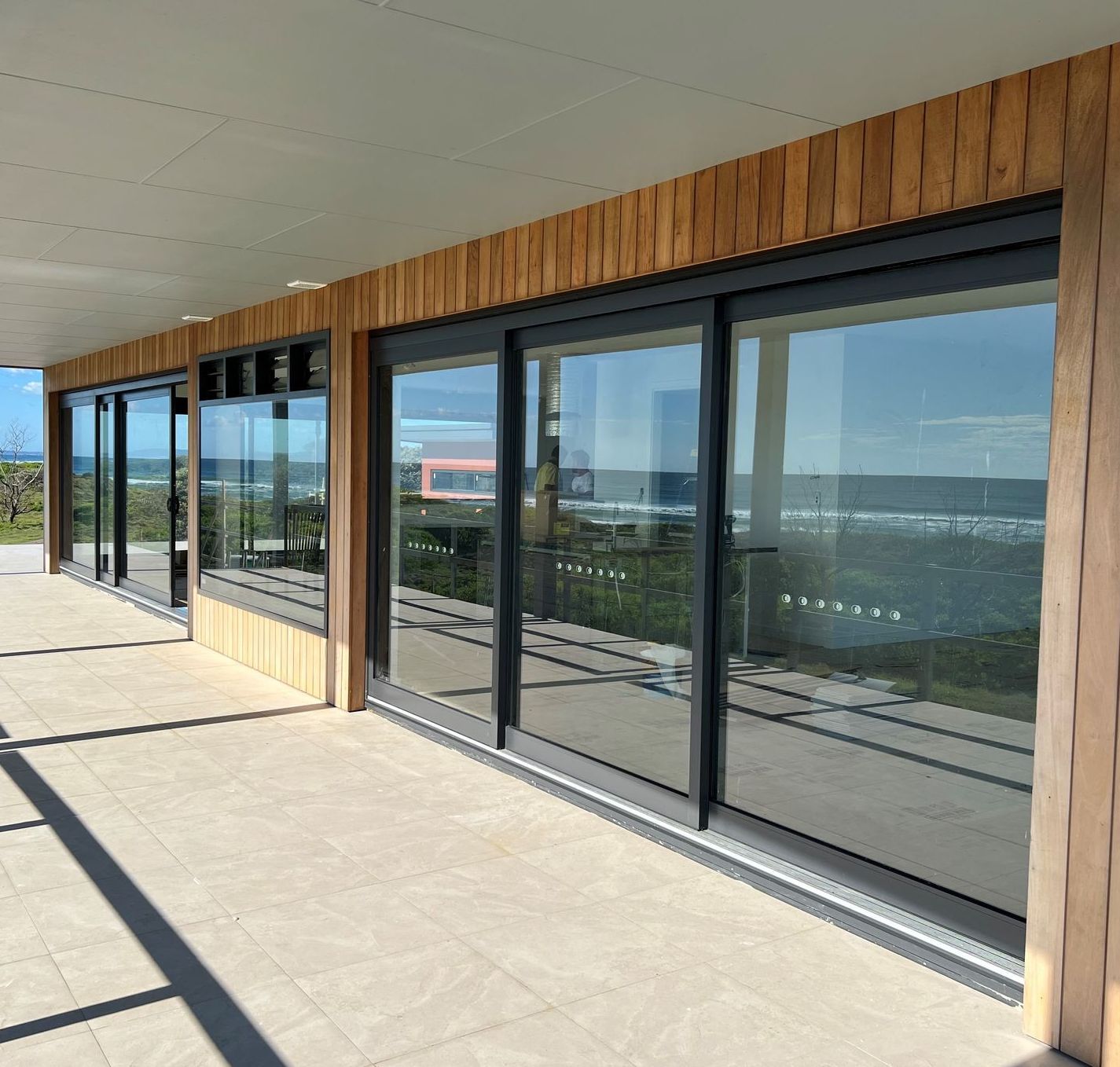

45mm Sliding & Stacking Door

A versatile sliding door range that has the potential to produce infinite possibilities, thanks to its unique design, which has the aptitude to embrace endless sliding door panels to cater for various types of projects from simple to complex.

The diverse configuration options encourage spacious openings which not only benefits with uninterrupted views, but also intertwines the outdoors with the indoors providing a well-balanced environmental atmosphere.

Collaborating a sophisticated design, tested strength and durability, and technology, ensures you will be receiving one of the best sliding door systems in today’s market.

These doors are designed to comply with Australian Standards AS1170, AS1288, AS2047 and AS4055.

Options

Top or bottom rolling track systems
Install within the building’s façade, slide internally, externally or in the cavity of the wall
Diverse range of rails and stiles
High and low-profile performance sills ranging from 0mm-50mm.
Configured with fixed louvre blades for additional privacy
Single direction or bi-parting openings
90 degree post-less corner
Single or Multiple tracks for either large single panels, or multi-panel stackable formations

A Large House With A Swimming Pool In Front Of It — Datco Aluminium Pty Ltd In Murwillumbah, NSW

A Drawing Of Different Types Of Sliding Glass Doors — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Features & Benefits

Aesthetically designed to suit any modern décor
Tested strength and durability to comply with Australian Standards
Innovative Seal technology for effective insulation and noise reduction
Advanced Slide technology for smooth operation
Compatible with a range of insect and security screens
Simple and efficient installation
Adaptable with a wide array of quality hardware brands

Specifications

Frame Sizes: From 50mm to Infinity
Maximum Opening Size: 3200mm high x Infinite Possibilities wide
Maximum Panel Size: 3100mm high x 3200mm wide
Maximum Panel Weight: 300kgs
Maximum Number of Panels: Unlimited

Glazing Range

5mm - 13.5mm (16.2mm pocket)
13mm - 30mm (34.2mm pocket)

Other Benefits

Aesthetically designed to suit any modern décor
Tested strength and durability to comply with Australian Standards
Innovative Ezi-Seal technology for effective insulation and noise reduction
Ezi-Slide technology for smooth operation.
Compatible with a range of insect and security screens
Simple and efficient installation
Adaptable with a wide array of quality hardware brands

Configuration Examples

Viewed from outside

Get a Quote

40mm Sliding & Stacking Door

Are you looking to find a sliding door system that has the perfect equilibrium of contemporary design, robustness, smooth functionality, and state-of-the-art technology? This commercial 40mm sliding door offers exactly that. This is a tough player, assuring you a long-lasting, weather-protecting, durable system. High-performance, low-profile sills, clean lines, soft curved transoms and mullions display beauty and aesthetics inspired by modern European architecture.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055.

A Living Room With Sliding Glass Doors And Red Chairs — Datco Aluminium Pty Ltd In Murwillumbah, NSW

Options

Versatile configuration
Heavy duty options for high wind load areas
Single-direction or bi-parting openings
Single and double glazing
Multiple track options
90-degree post-less corner

Features and Benefits

High-performance disability access sill
Durable to ferocious weather conditions
Heavy duty dual carriage bogey rollers
Dual precision bearings per roller for enhanced durability and operation
Low-profile high-performance sills
Clean lines with soft curved mullions and transoms
Technology optimising acoustics and insulation
Versatile screening alternatives
NATA tested and accredited

Specifications

Frame Sizes: 50mm, 101.6mm, 150mm, 200mm
Max. Opening Size: 3100mm high x 12000mm wide
Maximum Panel Size: 3000mm high x 1800mm wide
Maximum Panel Weight: 180kgs
Maximum No. of Panels: Unlimited

Glazing Range

5mm - 10.38mm (12.5mm pocket)
10.38mm - 15mm (18.5mm pocket)
15mm - 32mm (35.2mm pocket)

Get a Quote

FAQs

What distinguishes your high-performance doors from standard doors?
Our high-performance doors are designed with enhanced features such as better thermal insulation, improved durability, and advanced security options.
Are high-performance doors suitable for commercial applications?
Yes, our high-performance doors are suitable for both residential and commercial applications, offering durability and functionality for various environments.
Can high-performance doors be customised?
Yes, we offer customisation options for our high-performance doors to meet specific size, design, and functional requirements.
What are the benefits of the different thicknesses (26mm, 40mm, 45mm)?
Different thicknesses offer varying levels of insulation, strength, and performance. Choosing the right thickness depends on your specific needs and the environmental conditions.
